There is no single "best" manufacturing method for every project. Every fabrication choice represents a strict compromise. You must carefully balance upfront tooling costs, per-part unit prices, geometric complexity, and acceptable lead times. Selecting the wrong method creates cascading failures. It goes far beyond ruining aesthetic finishes. Poor choices lead to tolerance stack-up during final assembly. They cause blown tooling budgets and compromise overall structural integrity.
This guide breaks down how you should evaluate your project constraints. We will help you align those limits with the correct physical processing methods. You will learn to navigate material choices, precision thresholds, and volume requirements. Ultimately, you will discover how to build a technically sound manufacturing specification. You can then hand this clear specification directly to your fabrication partner for flawless execution.
Volume Dictates Strategy: High-volume runs justify expensive stamping tooling, while low-volume or highly iterative designs require agile, tooling-free methods like laser cutting and CNC bending.
Physics Limit Precision: Understand the difference between thermal processing (laser/plasma) and cold processing (waterjet/shearing) to manage Heat-Affected Zones (HAZ) and edge hardening.
Tolerances Compound: Specifying tight tolerances on individual cuts is useless if you do not account for tolerance stack-up during the bending and assembly phases.
Material Utilization Matters: Factoring in scrap rates and nested CAD layouts early on directly impacts total project cost and ESG/eco-friendliness goals.
Before comparing machinery, engineers and procurement teams must define the hard limits of their project. Skipping this phase guarantees misaligned manufacturing expectations. Follow these five steps to lock in your baseline requirements.
Step 1: Material & Grade Verification
Assess the ductility, tensile strength, and weldability of your chosen metal. Aluminum bends easily but requires specific inert welding environments to prevent oxidation. High-carbon steel offers incredible strength but risks cracking during bending if you ignore proper radii guidelines.
Step 2: Geometric Complexity Assessment
Analyze your CAD models. Separate flat 2D profiles from complex 3D forms. Simple flat blanks are ideal for high-speed shearing or punching. Conversely, complex 3D forms demand multi-axis CNC bending or progressive stamping dies.
Step 3: Define GD&T and Tolerance Thresholds
Establish your geometric dimensioning and tolerancing (GD&T) rules early. You must differentiate between standard commercial tolerances (often around ±0.50mm) and high-precision requirements. Aerospace and medical devices frequently demand strict ±0.05mm to ±0.10mm positional accuracy.
Step 4: Production Volume & Scalability (MOQ)
Calculate your volume break-even point. High-tooling methods demand large upfront investments but yield extremely low unit costs. Zero-tooling methods offer agility and low upfront costs but maintain a higher per-unit price at scale. Map out your expected annual volume.
Step 5: Surface Finish & Assembly Tolerance

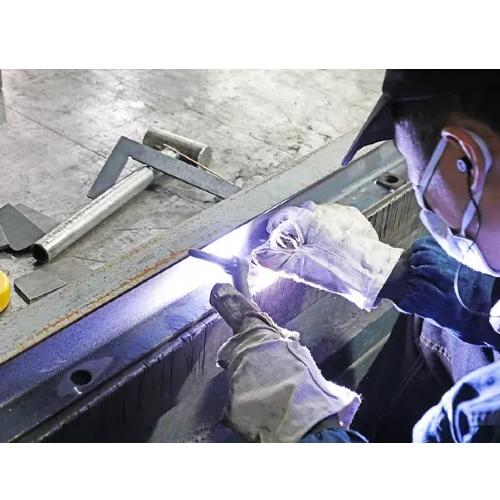

Determine how downstream finishing impacts the part. Powder coating adds thickness. Anodizing alters surface chemistry. You must also decide if you will use welding or riveting for assembly. Your initial fabrication technique directly impacts these final stages.
Removing material is the foundational step in fabrication. We group these techniques by their physical mechanism. Understanding the underlying physics helps you predict how your part will behave. Choosing the right Sheet Metal Cutting method sets the stage for success.
Thermal methods use concentrated energy to melt through metal. They offer excellent flexibility for custom shapes.
Laser Cutting: This process focuses a high-powered beam to vaporize material. It is highly precise, often achieving ±0.10mm accuracy. It produces a minimal kerf width. Risk: Lasers struggle to cut highly reflective materials like copper or brass. The intense heat also creates a localized Heat-Affected Zone (HAZ). This zone can harden edges and complicate secondary machining operations like tapping.
Plasma Cutting: Plasma utilizes electrically ionized gas to slice through thick, conductive metals. It is incredibly fast and cost-effective for heavy plates. Risk: Plasma leaves a wider kerf and a rougher edge finish. It produces a significantly larger HAZ compared to laser technology.
Implementation reality: Thermal methods are perfect for low-to-medium production volumes lacking dedicated tooling budgets.
Cold cutting avoids thermal distortion entirely. It relies on mechanical force or abrasive erosion.
Waterjet Cutting: This method uses a high-pressure stream mixed with abrasive garnet. It represents the only true "cold cut" available. Waterjets can slice extreme thicknesses, sometimes exceeding 300mm. The metal undergoes zero thermal distortion or edge hardening. Risk: Waterjets require slower feed rates. They inherently carry higher hourly operating costs.
Mechanical methods physically break the metal along specific shear lines. They operate quickly and cleanly.
Shearing/Blanking: Operators use large straight blades to slice flat sheets. The process creates fast, straight-line cuts. It generates almost zero material waste.
CNC Punching: Turret punches press specific tool shapes through the metal. They excel at producing repetitive hole patterns. They can also handle low-level forming tasks like louvers or dimples. Risk: Punching is strictly limited to the specific tooling shapes loaded into the machine.
| Cutting Method | Mechanism | Typical Precision | Edge Hardening (HAZ) | Best For |
|---|---|---|---|---|
| Laser | Thermal | ±0.10mm | Moderate | Complex profiles, iterative designs |
| Plasma | Thermal | ±0.50mm | High | Thick structural steel, fast cuts |
| Waterjet | Erosion | ±0.10mm | None | Extreme thickness, heat-sensitive alloys |
| Punching | Mechanical | ±0.15mm | None | Repetitive holes, minor 3D forms |
Once you complete the initial cutting phase, achieving 3D geometry requires careful analysis. You must weigh upfront investments against long-term unit economics. Each forming technique caters to specific volume brackets.
Operators use a press brake to press sheet metal into a V-die. This creates precise bends along straight lines.
Best for: Low to medium production volumes, functional prototypes, and iterative designs.
Economic reality: You face near-zero custom tooling costs. However, you pay higher labor and time rates per part. Inherent angle deviations typically range from ±1° to 2°. Achieving tighter tolerances requires highly skilled operators or expensive automated angle correction systems.
Stamping uses heavy mechanical presses to force metal into custom-machined tool dies. Progressive stamping performs multiple operations in a single continuous feed.
Best for: Mass production of identical parts.
Economic reality: This method can drive individual unit costs down to mere pennies. However, it demands massive upfront capital. Custom progressive dies often cost between $10,000 and $100,000. You also face long lead times. It commonly takes 45 to 60 days to test the die before producing the first viable part.
Metal strips pass through a series of consecutive rollers. Each roller bends the metal slightly more than the previous one.
Best for: Continuous, long-profile parts like structural tubes, roofing panels, or architectural channels.
Economic reality: Roll forming runs continuously at high speeds. It is highly efficient for mass quantities. However, it remains strictly limited to uniform cross-sections. You cannot alter the profile shape mid-run.
Bottom-of-funnel decision-makers need actionable insights. You must know what goes wrong and how to mitigate those issues before signing a purchase order. Navigating Sheet Metal Processing requires strict attention to detail.
A perfectly laser-cut flat pattern can easily fail final inspection. This happens when engineers ignore cumulative errors. Every bend introduces slight material stretching. Every weld introduces thermal shrinkage. If you do not calculate these shifts during the initial Design for Manufacturing (DFM) phase, individual tolerances stack up. The final assembly will not fit together. Always apply GD&T standards across the entire assembly, not just the flat cut.
Scrap directly impacts project costs and sustainability metrics. Advanced CAD nesting software analyzes part shapes and packs them tightly onto a single sheet. This maximizes material utilization. You should also consider your cutting method. Mechanical fracture methods like shearing produce fewer unusable offcuts than wide-kerf thermal methods. Prioritizing material efficiency supports modern ESG and sustainable manufacturing goals.
Maintaining quality across multiple production runs is difficult. A prototype might look flawless. The thousandth part might fail entirely. You must rely on a fabrication partner who enforces strict GD&T rules. Ask your supplier about their equipment maintenance. Routine CNC calibration is the only proven way to ensure absolute part-to-part consistency over long schedules.
Expertise involves knowing the limits of a process. Sheet metal fabrication is incredibly versatile. However, it cannot solve every engineering challenge. You must recognize when to walk away and choose a different manufacturing method.
Sheet metal equipment inherently features looser tolerances than high-end mills. Do your mating features require sub-0.05mm positional accuracy? Do you need specific, highly polished surface roughness parameters for sliding seals? If so, standard sheet metal cutting alone will fail. You must incorporate secondary CNC milling operations to achieve those critical dimensions.
Designers sometimes force sheet metal into heavy structural roles. They bend and weld thick plates to form complex nodes. This introduces significant weakness along weld seams and bend radiuses. When designing components for extreme loads, casting or forging is superior. These methods provide isotropic strength. Bent and welded assemblies simply cannot safely replicate the unified internal grain structure of a forged part.
Thick metal plates store massive amounts of internal kinetic stress. Applying thermal cutting methods releases this stress unevenly. Highly stressed plates often warp severely immediately post-processing. If your design requires perfect flatness across a thick span, thermal cutting is risky. You may need to specify expensive post-cut stress-relieving heat treatments. Alternatively, you might switch entirely to cold machining methods.
Selecting the right processing method requires rigorous evaluation. You must map your anticipated production volume, precision needs, and material constraints against physical fabrication realities. Do not fall into the trap of over-specifying tolerances on simple parts. Likewise, avoid under-specifying GD&T controls on critical assemblies.
Your next steps are clear. Finalize your GD&T requirements before approaching a manufacturer. If you anticipate high volumes, run a tooling ROI analysis to see if stamping dies make financial sense. Finally, approach fabricators with a strict focus on DFM collaboration. An experienced partner will identify tolerance stack-up risks early, saving you both time and capital.
A: Cutting removes material from a flat blank using lasers, waterjets, or shears to create a 2D profile. Forming physically bends, stretches, or rolls the existing material into a 3D shape without removing any metal.
A: HAZ alters the localized metallurgy along a cut edge. It can significantly harden edges, making secondary operations like tapping, drilling, or reaming difficult. Furthermore, extreme heat can compromise the metal's natural corrosion resistance.
A: While the exact break-even point varies based on geometric complexity, volumes exceeding 10,000 units typically justify the upfront die costs of stamping. High volumes amortize the heavy initial investment, resulting in a drastically lower per-piece price.
A: Sheet metal inherently warps, springs back after bending, and stretches dynamically. GD&T (Geometric Dimensioning and Tolerancing) controls complex geometric relationships like flatness, profile, and concentricity. This framework prevents catastrophic final assembly failures caused by compound tolerance errors.
