While the underlying physics of fiber optics date back decades, understanding exactly how a fiber laser cutting machine works remains critical today. Evaluating your capital expenditure, determining precise facility requirements, and calculating production ROI all hinge on this foundational knowledge. Unlike legacy CO2 systems, fiber lasers rely entirely on advanced solid-state technology. This fundamental shift in beam generation dictates everything from your ongoing maintenance schedules to the exact types of highly reflective metals you can reliably process on the shop floor.
This guide breaks down the physical mechanics, core system components, and crucial operational parameters of modern fiber lasers. You will discover how to match specific machine capabilities to your exact manufacturing requirements. By the end, you will know exactly how to optimize every laser cut for maximum speed, precision, and efficiency.
Solid-State Reliability: Fiber lasers generate light using a rare-earth doped fiber cable, eliminating the need for delicate gas mixtures and alignment mirrors, dramatically reducing ongoing maintenance.
Wavelength Efficiency: Operating at a 1.06 µm wavelength, fiber lasers are exponentially better absorbed by reflective metals (aluminum, copper, brass) compared to traditional methods.
Scalable Output: Cut quality and speed are highly dependent on matching the right laser power (wattage) and assist gases to the specific material thickness.
Total Cost of Ownership (TCO): While upfront costs are significant, the 100,000-hour typical lifespan and reduced energy consumption often justify transitioning from outsourced cutting to in-house production.
To fully leverage a fiber laser machine, you must understand the underlying science. The physical transition from basic electricity to a high-density energy beam involves several precise optical stages.
The process begins inside solid-state laser diodes. These diodes act as the pump source. They convert electrical energy into raw photons. The system then feeds this emitted light directly into a highly specialized fiber optic cable.
The core of this fiber optic cable acts as the gain medium. Manufacturers dope this central core with rare-earth elements. Ytterbium serves as the most common doping agent for metal cutting applications. As pump light hits the Ytterbium atoms, their electrons become excited. They release additional photons.
To amplify this light exponentially, the system uses Fiber Bragg Gratings (FBGs). These gratings act as microscopic mirrors etched directly into the fiber. They bounce the photons back and forth. This creates stimulated emission, rapidly intensifying the light beam.
You might wonder how this intense light travels without losing power. Snell’s Law explains this phenomenon through total internal reflection. The fiber consists of a high-index core surrounded by a lower-index cladding. When light hits this internal boundary at a specific critical angle, it reflects completely inward.
This closed-loop transmission mechanism offers a massive operational advantage. The beam cannot scatter. You experience zero loss of power as the light travels from the source generator to the cutting head.
This solid-state generation process naturally produces light at a 1.06 µm near-infrared wavelength. Metals absorb this specific energy rapidly. Legacy CO2 systems operate at 10.6 µm. Those longer waves bounce off reflective surfaces like brass, copper, and aluminum. Fiber lasers process these highly reflective materials seamlessly.
Transparency note: This exact physical advantage creates strict material limitations. Clear glass, acrylic, and wood do not absorb the 1.06 µm wavelength. The beam will either pass harmlessly through these materials or dangerously ignite them.
Understanding machine anatomy helps buyers identify exactly what they are paying for. It also highlights where potential failure points reside on the shop floor.

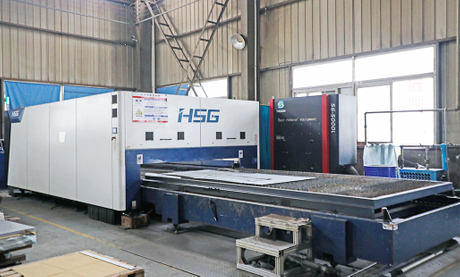

The laser source acts as the beating heart of your equipment. These units are completely sealed and require incredibly low maintenance. The flexible fiber optic delivery system replaces the rigid, complex mirror paths found in older machines. This removes daily optical alignments from your maintenance checklist.

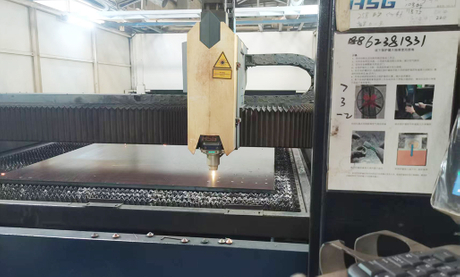

The cutting head translates raw light into a usable tool. Once the diverging light exits the fiber cable, it hits a series of collimating lenses. These lenses align the chaotic light waves into a perfectly straight, parallel beam.
Next, the focusing lens takes over. It concentrates this parallel beam into a microscopic dot. This extreme focal point creates a power density high enough to vaporize solid steel instantly.
Vaporizing metal is only half the battle. You must remove the molten material to complete the laser cut. A coaxial nozzle surrounds the laser beam. It blows high-pressure assist gas directly into the cut zone. This gas ejects the molten slag downward. It also cools the surrounding material edge.
The CNC unit serves as the brain. Programmable logic controllers (PLCs) read your digital CAD files. They translate these geometries into rapid electrical signals. High-torque servo motors respond to these signals. They drive the cutting head across the X, Y, and Z axes. This synergy allows you to achieve micro-level precision on complex, densely nested parts.
Extreme energy generation produces extreme heat. Industrial water chillers circulate coolant through the laser source and the cutting head. Without them, your expensive optical lenses would suffer rapid thermal degradation. Simultaneously, heavy-duty extraction systems pull hazardous metallic fumes and fine dust out of your working environment.
Component | Primary Function | Common Maintenance / Failure Risk |
|---|---|---|
Laser Source | Generates and amplifies the 1.06 µm beam. | Highly reliable; rarely fails before 100,000 hours. |
Cutting Head | Collimates and focuses the beam; delivers gas. | Protective lens contamination from metal spatter. |
Servo Motors | Provide rapid, precise X/Y/Z axis movement. | Requires regular lubrication of guide rails. |
Chiller Unit | Prevents thermal degradation of optics. | Water filter clogs; coolant degradation over time. |
Operating a fiber laser requires more than pressing a start button. Evaluators need technical criteria to assess machine performance. Operators must manipulate these parameters to optimize every laser cut.
Operators can deliver laser energy in two distinct modes. Continuous Wave (CW) keeps the beam constantly on. You use CW for high-speed, continuous paths across thick metal sheets. It maximizes productivity on straight lines.
Conversely, pulsed output flashes the beam on and off thousands of times per second (measured in Hz). You utilize pulsed frequencies to manage heat transfer. This prevents delicate features from warping. Operators also use pulsed modes to pierce initial holes in thick plates without blowing out the surrounding metal.
Wattage determines brute strength. Higher laser power directly correlates to your maximum severable thickness. It also dictates your overall contouring speed. A 1kW laser easily severs 10mm carbon steel. However, it will struggle immensely against 5mm aluminum. Aluminum reflects heat rapidly, demanding higher wattage to sustain the melt pool.
Your choice of assist gas radically alters the final product finish.
Nitrogen (N2): Acts as a shielding gas. It prevents oxidation during the melting process. You get a clean, silver edge. This is ideal for stainless steel parts heading straight into a powder coating oven.
Oxygen (O2): Acts as a burning agent. Oxygen creates an exothermic reaction when it hits hot steel. It adds extra heat to the process. This helps low-power machines sever thicker carbon steel plates. However, it leaves an oxidized crust you must grind off later.
Compressed Air: A highly economical mix of mostly nitrogen and oxygen. It works well for thin, non-critical parts where mild oxidation is acceptable.
The Heat-Affected Zone (HAZ) represents the area where hot metal changes its metallurgical properties. A wide HAZ causes physical distortion. It also weakens the finished part. You minimize the HAZ by dialing in the perfect focal position and maintaining high cutting speeds. Faster head movement allows less time for heat to bleed into the surrounding material.
Purchasing the wrong wattage ruins your return on investment. Buying too much power wastes capital. Buying too little power creates frustrating production bottlenecks. Use this framework to match machine capabilities to your daily production realities.
These machines thrive on thin sheet metal. If you manufacture HVAC ductwork, light electrical enclosures, or kitchen equipment, a 1kW to 3kW system fits perfectly. You achieve incredibly high-speed contouring. Furthermore, you benefit from minimal electrical power consumption.
Heavy industries demand high power. If you process thick structural steel, agricultural machinery components, or heavy construction equipment, you need 4kW to 12kW or more. These massive systems blast through thick plates rapidly. More importantly, high-power sources leave smooth, clean edges on thick sections. You eliminate expensive secondary grinding operations entirely.
Always respect the physical limitations of the technology. Reiterate your material exclusions. Polycarbonates, plastics, and wood have no place on a fiber laser bed.
Additionally, define your thickness thresholds. If you regularly process raw steel plate exceeding 30mm thick, fiber optics might not make economic sense. In ultra-thick applications where edge precision matters less, traditional plasma tables or waterjet cutters often provide a much more cost-effective alternative.
Buying a fiber laser introduces significant business anxieties. You must address hidden operational costs and stringent facility implementation requirements before signing a purchase order.
The initial sticker price of a high-wattage fiber machine routinely shocks first-time buyers. However, evaluating capital expenditure requires a long-term view. Fiber machines boast drastically lower ongoing operational costs compared to older technologies. You replace fewer consumable lenses. You pay zero dollars for complex mirror alignments. Furthermore, the solid-state electrical efficiency slashes your monthly utility bills.
Many job shops struggle with the decision to bring cutting operations in-house. To resolve this, audit your monthly outsourcing invoices. Track delays caused by third-party vendor schedules. When your monthly outsourced cutting costs approach the combined total of machine financing, floor space, and a dedicated operator’s salary, you must transition to in-house production. Regaining control over your lead times often justifies the investment alone.
Your multi-million-dollar machine remains only as good as its human operator. Highlight the necessity of technical proficiency. Your staff must master CAD/CAM software. Furthermore, sophisticated nesting software integration is mandatory. Good nesting algorithms pack parts tightly onto raw sheets. This minimizes expensive scrap metal and maximizes your material yield.
Never underestimate facility requirements. Fiber lasers operate as Class 4 optical hazards. Direct or reflected exposure to the 1.06 µm beam causes instant, permanent blindness.
Dedicated Floor Space: You must clear ample room for the machine bed, loading mechanisms, and bulky chiller units.
Optical Enclosures: The machine requires a fully sealed, laser-safe enclosure. Safety glass windows must filter the specific near-infrared wavelength.
Ventilation: Strict adherence to industrial fume extraction standards is non-negotiable. Vaporized metals create toxic breathing hazards.
A modern fiber laser cutting machine represents a brilliant merger of disciplines. It combines solid-state optical physics with advanced CNC motion control. This synergy delivers unparalleled processing speed and micro-level precision on reflective metals.
Base your final procurement decisions on hard data. Evaluate your most frequently processed material type. Define your absolute maximum thickness requirements. Finally, audit your available facility infrastructure before committing to a specific equipment footprint.
For your immediate next steps, do not rely purely on sales brochures. Encourage your engineering team to request live time-studies. Send your own difficult CAD files to manufacturers. Demand physical sample cuts. Seeing your exact parts processed in real-time is the only way to validate a specific wattage or brand.
A: A high-quality fiber laser source typically boasts a lifespan of around 100,000 continuous hours before experiencing significant diode degradation. Because it utilizes solid-state technology with no moving internal mirrors or delicate gas mixtures, it heavily outlasts legacy CO2 systems. With proper chiller maintenance, the source will operate reliably for decades.
A: No. Fiber lasers generate light at a 1.06 µm wavelength. Clear materials like glass and acrylic do not absorb this near-infrared frequency; the beam passes straight through them. For organic materials like wood or fabric, the intense heat will simply cause the material to catch fire rather than executing a clean slice.
A: Your assist gas dictates the chemical reaction at the cut zone. Oxygen acts as an aggressive burning agent, creating an exothermic reaction that helps sever thick carbon steel efficiently. Conversely, Nitrogen acts as an inert shield. It cools the edge and prevents oxidation, leaving a bright, clean finish on stainless steel and aluminum.
A: The high initial cost stems from the sophisticated rare-earth doped diodes, expensive fiber optic cables, and micro-precision cutting heads. However, this capital expenditure is rapidly offset. Fiber systems consume vastly less electricity, eliminate the need for expensive resonator gases, and require almost zero optical maintenance over their operating lifespan.
