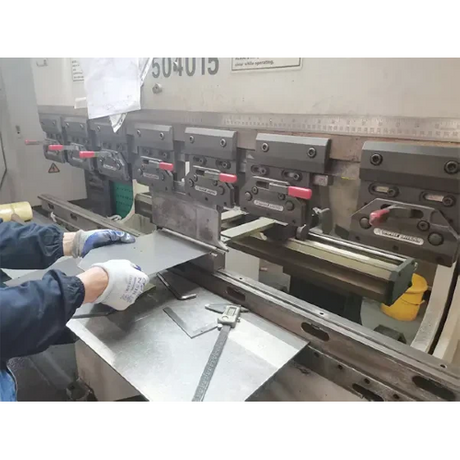

Choosing the wrong cutting method directly impacts your project viability. Poor tooling decisions quickly lead to excessive wear, severe edge distortion, and out-of-tolerance parts. They inevitably result in blown budgets and delayed timelines. Modern Sheet Metal Processing offers a broad landscape of solutions. Available equipment ranges from portable mechanical tools for field repairs to industrial-grade thermal and abrasive profiling systems. We must bridge the gap between engineering requirements and manufacturing realities. This article provides evaluators and buyers with a highly objective selection framework. You will learn exactly how to choose the right cutting technology. We base these technical recommendations firmly on material gauge, production volume, and strict tolerance constraints.
Gauge Dictates the Tool: Material thickness (gauge) and hardness (aluminum vs. stainless steel) determine baseline equipment capacity; undersizing tools guarantees failure.
Heat vs. Mechanical: Mechanical shearing produces zero heat-affected zones (HAZ) but limits geometric complexity, while thermal cutting offers infinite shapes but requires HAZ management.
Clearance is Critical: In high-volume mechanical blanking, improperly calibrated die clearances cause either severe edge burrs or rapid tooling degradation.
DFM Drives Cost: Upstream design choices—like accommodating for kerf width and avoiding sharp internal angles—drastically reduce downstream sheet metal fabrication costs.
You must establish foundational technical constraints before shortlisting any cutting method. Jumping straight to machine selection often creates costly downstream failures. We begin by evaluating the raw material physical properties. Production volume expectations also dictate the most logical path forward.
Metal gauge represents a confusing standard for many new engineers. An inverse relationship exists between gauge numbers and physical thickness. A lower gauge number always indicates a thicker sheet. However, a single tool's cutting capacity fluctuates heavily based on material density and hardness.
If you purchase a tool rated for 16-gauge mild steel, you cannot use it blindly on all 16-gauge metals. You must downgrade the tool's capacity for harder materials like stainless steel. Conversely, you can upgrade its rated capacity when processing softer metals like aluminum. Ignoring these metallurgical differences damages equipment and ruins workpieces.
| Baseline Tool Rating | Mild Steel Capacity | Stainless Steel Capacity | Aluminum Capacity |
|---|---|---|---|
| 16-Gauge Rated | 16 Gauge (0.059") | 18 Gauge (0.048") - Downgrade | 14 Gauge (0.064") - Upgrade |
| 12-Gauge Rated | 12 Gauge (0.104") | 14 Gauge (0.074") - Downgrade | 10 Gauge (0.101") - Upgrade |
Volume requirements directly influence your equipment choice. Prototyping and repair work prioritize low setup costs. In these scenarios, portability matters most. You will likely rely on power tools or manual slicing methods. They require minimal programming and offer immediate results.
Mid-to-high volume production demands a completely different approach. Here, you prioritize fast cycle times and repeatable accuracy. Automation becomes mandatory. Laser cutters, CNC punching machines, and automated shearing stations dominate this category. They require higher upfront programming time but deliver minimal per-part costs.
You must define project success criteria early. Determine your absolute tolerance requirements before cutting begins. Set rigid budget limitations for both tooling and labor. Finally, define your acceptable secondary operations. Will the cut edge require extensive manual deburring? If so, you might want to select a cleaner, albeit slower, cutting method to save post-processing labor.
Field installations and prototypes often require localized cutting solutions. You do not always have access to a factory floor. In these cases, manual and portable power tools provide immense practical value. They tackle architectural installations and maintenance repairs effectively.
Many fabricators misunderstand aviation snips. A persistent myth claims the color coding indicates user handedness. This is completely false. The handle colors (red, green, yellow) actually dictate the curl direction of the off-cut waste stream. They control how the metal deflects away from your hands.
Yellow snips cut in a straight line. Green snips push the waste material to the right, making them ideal for clockwise curves. Red snips push the waste to the left, favoring counter-clockwise cuts. To prevent panel distortion, you should make short, incremental cuts. Move forward only a quarter inch at a time.
Nibblers provide powered slicing functionality. They operate via continuous semi-circular punching. A small internal punch rapidly cycles up and down, biting out tiny moons of metal.
This process offers one massive advantage. It avoids sheet distortion entirely. The workpiece remains perfectly flat because the tool removes material rather than wedging it apart. However, nibblers produce extremely sharp, hazardous metal chips. These tiny shards embed into boot soles and skin easily. Nibblers also face strict gauge capacity limits.
Angle grinders remain a staple in many shops. They require ultra-thin cutting discs to slice metal efficiently. Operators must maintain extreme kickback awareness. A bound disc shatters instantly at high speeds, creating severe safety hazards.
Bandsaws offer a more controlled cutting environment. They demand bi-metal blades to survive the cutting friction. You must operate bandsaws at controlled, low speeds. Keep the blade running between 200 and 700 RPM. Excessive speed causes thermal tool failure and strips the blade teeth instantly.
Standard shears often crush or curl extremely thin metals. For materials under 0.025 inches, try this fatigue-bending method. It preserves perfect flatness and avoids mechanical shear curling.
Clamp a straight metal edge securely over your thin sheet material.
Use a fresh, sharp utility knife to score a deep line along the straight edge.
Repeat the scoring motion three to four times applying firm, even pressure.
Align the scored line exactly over the sharp corner of your workbench.
Bend the overhanging metal down past 90 degrees, then flex it back up until it snaps cleanly.
Industrial manufacturing heavily utilizes shear force for fast production. These methods prioritize mechanical separation over material removal or thermal melting. They represent the backbone of traditional metalworking.
Shearing executes straight-line cuts utilizing a precise punch and die mechanism. Guillotine shears represent the most common example. An upper blade descends forcefully past a fixed lower blade. It slices the metal much like standard paper scissors.
Evaluating this method reveals clear advantages. It produces virtually zero waste material. It also generates zero heat-affected zones (HAZ). Operators execute cuts at high speeds completely at room temperature. However, shearing faces strict limitations. It can only cut straight lines. Furthermore, dull blades will warp the sheet and cause significant edge rollover.
Blanking punches complex 2D shapes out of a primary sheet. This process requires meticulously designed tooling. The critical factor is clearance calibration. Clearance represents the tiny, calculated gap between the moving punch and the stationary die.
Improper clearance triggers severe defect troubleshooting scenarios. An excessively large gap yields rolled edges and severe burrs. The metal bends into the die before breaking. Conversely, a gap that sits too tight causes excessive tooling wear. It also creates torn edge defects as the metal binds.
We look for specific traits to verify a quality standard. A perfectly processed edge features a defined, shiny sheared zone at the top. This shiny band transitions smoothly into a minimal, clean fracture zone at the bottom. This visual signature confirms optimal die clearance.
| Defect Observation | Root Cause | Corrective Action |
|---|---|---|
| Heavy burrs and excessive edge roll | Clearance gap is too large | Reduce gap distance between punch and die |
| Double fracture lines and torn edges | Clearance gap is too tight | Increase gap distance to allow clean breaks |
| Rapid tool dulling and high press load | Inadequate lubrication or tight gap | Verify tool coating, add lubrication, check gap |
Mechanical shears fail when designs require complex curves or intricate internal cutouts. CNC-driven profiling technologies step in to handle intricate part creation. They also excel at thick-plate metal processing. These methods use intense energy to sever the material.
Laser cutters dominate modern fabrication floors. They focus a high-intensity light beam to melt and vaporize metal instantly. You must choose between two primary laser technologies.
Fiber lasers are ideal for rapid processing of thin metals. They excel at cutting highly reflective materials like aluminum, brass, and copper. The laser beam absorbs perfectly into these bright surfaces. CO2 lasers are older but still valuable. They are better suited for thicker plates and mixed-material processing environments.
Laser cutting inherently introduces risks. The intense heat induces a heat-affected zone (HAZ) along the cut edge. This localized heating may harden the edge unexpectedly. It can also cause severe thermal warping across the panel. You must optimize cutting speed and assist-gas cooling to prevent panel distortion.
Waterjet systems take a completely different approach. They utilize highly pressurized water, often reaching up to 90,000 psi. The machine mixes this water stream with a hard garnet abrasive. The resulting jet erodes the metal precisely.
Waterjet evaluation highlights one incredible advantage. It generates zero thermal stress. It is a completely cold process. This makes waterjet cutting ideal for temperature-sensitive alloys and aerospace materials. It maintains the base metallurgical properties of the material perfectly. It runs slower than a laser, but it delivers highly accurate, slag-free edges.
Plasma cutting represents the fastest option for severing very thick steel plates. The process blows an electrical arc through a nozzle via compressed gas. This creates a superheated plasma jet.
While extremely fast, plasma produces a significantly wider kerf. It also leaves a rougher edge quality compared to laser or waterjet. Plasma cutting works best for heavy structural steel where fine edge aesthetics matter less than processing speed.
Successful production starts long before the metal hits the machine. Upstream engineering guidelines ensure a smooth Sheet Metal Fabrication process. Implementing strong Design for Manufacturing (DFM) principles reduces errors. It also heavily suppresses manufacturing costs.
Every cutting tool removes a small amount of material as it passes through the sheet. We call this material loss the kerf width. Lasers, plasma arcs, and waterjets all generate different kerf widths. You must design CAD files to accommodate this specific material loss. If you ignore kerf compensation, your finished parts will measure noticeably smaller than your intended design dimensions.
Machine time equals money. You can optimize part geometry to speed up processing and prevent physical defects. Implement these rules during the drafting phase:
Avoid sharp internal corners: Always implement internal radii. Sharp corners create massive stress concentrations that lead to metal fracturing during bending operations.
Limit complex cutouts: Overly intricate designs force CNC machines to decelerate around tight curves. Simplifying shapes reduces machine time significantly.
Standardize hole sizes: If you use CNC punching, stick to standard punch tool diameters. Custom hole sizes require custom, expensive tooling.
Keep holes away from edges: Placing holes too close to the part edge causes the metal to bulge outward during the cutting or punching phase.
Raw material often represents the largest expense in fabrication. You must maximize material yield through logical part placement. We utilize specialized nesting software to arrange flat patterns on a single sheet. Good nesting drastically reduces scrap rates. It interlocks varying part shapes like a puzzle, lowering the per-part cost significantly. Engineers should design parts with nesting efficiency in mind, favoring straight shared edges where possible.
The optimal cutting method always represents an intersection of multiple factors. You must balance material constraints, geometric complexity, and production scale. No single tool performs perfectly across all applications.
Use clear shortlisting logic. Start strictly with volume and tolerance. If you need straight lines and high volumes, mechanical shearing wins easily. For precision curves, evaluate laser or waterjet technologies based on the material's thermal sensitivity. Prototyping allows for manual power tools to keep initial costs low.
Your next step requires active collaboration. Consult with a trusted fabrication partner during the CAD design phase. Align your drawings with practical DFM tolerances early. This proactive step secures accurate processing quotes and guarantees a flawless production run.
A: The handle colors indicate the waste material's curl direction, not left or right-handedness. Yellow snips cut straight lines. Green snips push the waste material to the right, making them ideal for cutting clockwise curves. Red snips push the waste to the left, which works best for counter-clockwise curves.
A: Yes, if the equipment is poorly maintained. Dull shear blades cause the metal to warp and twist. Additionally, an improper gap clearance between the upper and lower blades leads to severe edge rollover, heavy burrs, and noticeable panel curling.
A: Waterjet cutting is the premier CNC method for avoiding HAZ, as it relies entirely on cold water and abrasive erosion. Traditional mechanical shearing and blanking also operate at room temperature, completely preventing any thermal distortion or localized hardening.
A: Kerf refers to the physical width of the material removed by a cutting tool, such as a laser beam, plasma arc, or saw blade. Engineers must compensate for the kerf width in their CAD files to ensure the final part meets exact dimensional accuracy.
