Is a 3D printer a CNC machine? Technically, yes, but practically, no. You will often hear people debate this classification in engineering forums and on manufacturing floors. The confusion stems from a clash between strict dictionary definitions and everyday shop-floor terminology. Both technologies rely on automated computer programs to move physical toolheads across Cartesian coordinates. However, lumping them together ignores massive operational differences.
Choosing the wrong technology for your production line can destroy your budget and timeline. The semantic debate matters far less than making the right operational decision. You must choose between additive and subtractive manufacturing based on your specific prototyping or production needs. In this guide, we break down exactly how these technologies overlap. We explore the critical differences between them. You will learn how to evaluate precision, material strength, and production volume to choose the best method for your project.
Technical Classification: 3D printers are technically CNC machines because they use computer numerical control, but the industry reserves the term "CNC" strictly for subtractive tools (mills, lathes).
Core Differences: 3D printing is Additive (building layer by layer); a traditional CNC machine is Subtractive (removing material from a solid block).
Economic Sweet Spots: 3D printing dominates low-volume prototyping (1–10 parts) and complex internal geometries; a CNC machine wins in high-volume scaling, strict tolerances, and high-stress applications.
Workflow Reality: CNC machining requires specialized operators, tooling, and fixturing setups, whereas 3D printing offers a "print-and-go" workflow with lower initial labor costs but often requires post-processing.
To understand the debate, we must look at the literal definition of the acronym. "CNC" stands for Computer Numerical Control. It simply means that a computer program dictates the physical movements of a machine. Under this broad dictionary definition, any machine driven by programmed automated commands fits the description. This includes laser cutters, plasma cutters, and yes, 3D printers.
These machines share a surprising amount of hardware and software DNA. Both systems begin with a 3D CAD (Computer-Aided Design) model. Operators then process this digital model through CAM (Computer-Aided Manufacturing) or slicing software. This software translates the 3D shape into G-code. G-code is the universal language of automated manufacturing. It tells the machine's stepper motors exactly where to move along the X, Y, and Z axes.
Despite this shared foundation, the industrial world draws a hard line between them based on how they handle material. This represents the divide between additive and subtractive manufacturing.
3D Printing (Additive Manufacturing): This process creates parts from nothing. It extrudes melted plastic, cures liquid resin, or fuses metal powder layer by layer to build a final shape.

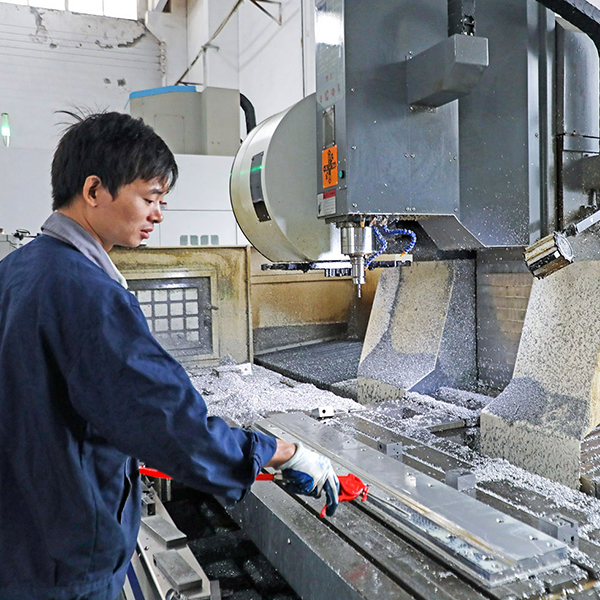

cnc machine (Subtractive Manufacturing): This process starts with a large solid block or billet of material. It uses spinning cutting tools to carve away excess material until only the final part remains.
Common Mistake: Do not assume that G-code is universally interchangeable. While both machines read G-code, the specific commands for spindle speed on a milling machine will cause fatal errors if sent to a 3D printer's extrusion head.
When engineering precise assemblies, accuracy is non-negotiable. Here, subtractive manufacturing asserts absolute dominance. A standard cnc machine easily holds tight tolerances of ±0.025mm to ±0.125mm. Heavy-duty industrial mills can achieve even tighter precision for aerospace components.
3D printing struggles to match this level of accuracy. As materials melt and cool, they shrink and warp. An industrial FDM (Fused Deposition Modeling) printer typically holds tolerances around ±0.200mm. Powder-based SLS (Selective Laser Sintering) printers usually hover around ±0.300mm. For parts requiring press-fits or bearing journals, printing often falls short without post-machining.
Accuracy Comparison Chart
Technology | Typical Tolerance | Surface Finish | Best Fit For |
|---|---|---|---|
CNC Milling | ±0.025mm - ±0.125mm | Excellent (Smooth, machined) | Mating surfaces, precise gears |
SLA 3D Printing | ±0.100mm - ±0.150mm | Good (Smooth, but brittle) | Visual models, mold masters |
FDM 3D Printing | ±0.200mm - ±0.500mm | Poor (Visible layer lines) | Rough prototyping, jigs |
SLS 3D Printing | ±0.300mm | Fair (Slightly grainy) | Complex functional plastics |
Material strength behaves very differently depending on how it is formed. A cnc machine cuts parts from an extruded or cast billet. This produces isotropic parts. An isotropic part has uniform strength in all directions. If you pull the part horizontally or vertically, it resists the force equally.
3D printed parts are typically anisotropic. Because they are built layer by layer, the bond between the layers (the Z-axis) is weaker than the continuous material within a single layer (the X and Y axes). If you apply sheer stress along the layer lines, a printed part will snap long before a machined part would. Engineers must carefully orient 3D printed models during the slicing phase to ensure stress loads do not pull against the weak Z-axis.
Machining has a famous physical limitation known as the "internal corner" issue. Cutting tools are cylindrical. When a spinning cylinder cuts into a block, it cannot create a perfectly sharp 90-degree internal corner. It will always leave a rounded corner radius. To bypass this, designers must add "dog-bone" reliefs or use specialized broaching tools.
3D printing completely ignores this rule. Because it adds material instead of reaching a tool into a pocket, it offers immense geometric freedom. You can easily print lightweight lattice structures, complex internal cooling channels, and organic topologies. These designs are physically impossible to cut with a traditional milling machine.
Deciding between these methods often comes down to your required production volume. Each process scales differently regarding time and money.
1–10 parts: 3D printing usually wins on cost per part. You simply upload a file, hit print, and return later. There are no expensive setup times or custom fixtures to build.
10–100 parts: This is a gray area. Your decision will depend heavily on the part's geometry and material requirements. Simple brackets might be cheaper to machine, while complex manifolds remain cheaper to print.
100–1,000+ parts: A cnc machine easily wins this category. Once the programmer sets up the initial tool paths and fixtures, the machine can cut parts incredibly fast. The high initial setup costs spread out across hundreds of parts, driving the individual part cost down rapidly.
Machining carries a high barrier to entry. It requires highly skilled machinists. These operators must understand CAM programming, select the correct cutting tools, calculate chip loads, and design custom work-holding fixtures. One small programming error can crash the machine, destroying expensive tools and materials.
In contrast, additive manufacturing offers much lower operational friction. Automated slicing software handles the complex tool paths automatically. Modern printers feature auto-leveling beds and filament runout sensors. An entry-level technician can start a print job in minutes. Furthermore, 3D printers can safely run unattended overnight. This "lights-out" manufacturing significantly reduces labor overhead for small production runs.
Subtractive processes inherently generate scrap. When you carve a bracket out of a solid block of aluminum, you turn a large percentage of that block into metal chips. While you can recycle these chips, it still results in higher upfront raw material costs for complex, hollow parts.
Additive processes boast excellent material yield. They only consume the exact amount of material needed to build the final shape, plus a small amount of breakaway support structure. If your part utilizes expensive advanced polymers, printing will save you substantial raw material costs.
Your operating environment dictates your material, which in turn dictates your manufacturing method.
Plastics & Polymers: FDM and SLA printers dominate the rapid plastic prototyping space. They use cheap PLA, ABS, and PETG plastics. However, these materials often degrade under high heat or UV exposure. If your part needs extreme wear resistance or chemical stability, you will want machined engineering plastics. Machining Delrin, PEEK, or PTFE provides superior mechanical properties that standard printed plastics cannot match.
Metals: Metal 3D printing (like DMLS or SLM) certainly exists. Aerospace companies use it for rocket engine nozzles. However, it is exceptionally expensive and requires hazardous powder handling. For 99% of manufacturing needs, a traditional cnc machine remains the undisputed standard. It efficiently machines aluminum, cold-rolled steel, titanium, and high-temp superalloys like Inconel into durable, end-use parts.
Recommendation: 3D Printing (FDM or SLA).
Why: When designing consumer electronics, you need rapid iterations. You can print a new enclosure design every 24 hours. It offers extreme cost-efficiency for form, fit, and function testing. Furthermore, you can print intricate snap-fits and internal ribs without needing expensive 5-axis machining setups.
Recommendation: cnc machine.
Why: A suspension bracket on an off-road vehicle faces massive, unpredictable stress loads. It requires the maximum tensile strength of billet metal. Machining provides the isotropic strength necessary to prevent sudden failure. It also provides exact mating tolerances so the bolts align perfectly during assembly.
Modern industry is increasingly adopting a hybrid approach. Why choose one when you can leverage both? Manufacturers often use metal 3D printing to create near-net-shape blanks. This allows them to generate complex internal cooling channels. They then move this printed blank to a high-precision mill. The mill cuts the critical mounting holes and flattens the mating surfaces to exact tolerances. This hybrid workflow combines additive geometric freedom with subtractive precision.
While a 3D printer shares the automated, G-code-driven soul of a subtractive tool, they are fundamentally different machines. They solve different manufacturing problems. Treating them as identical leads to wasted capital and failed projects.
Audit your geometry: If you need internal voids, complex organic lattices, or zero material waste, additive manufacturing is your clear path forward.
Audit your precision: If you require strict tolerances below 0.100mm, ultra-smooth surface finishes, and repeatable press-fits, subtractive manufacturing is mandatory.
Audit your scale: Use printers for low-volume, iterative prototyping. Transition to machining when scaling past 100 units or requiring heavy-duty, isotropic metal parts.
Action Step: Review your current product roadmap. Identify parts that require high strength and out-source those to a reliable machine shop. Identify parts used purely for visual prototyping and invest in an in-house commercial 3D printer to speed up your design cycle.
A: No. They are complementary technologies. 3D printing excels where machining struggles, particularly with complex internal geometries and minimizing material waste. However, machining retains the crown for high-speed precision, superior surface finishes, and ultimate isotropic material strength. Manufacturers will continue to use both alongside each other.
A: 3D printers are vastly cheaper to purchase, operate, and maintain. Slicing software automates the programming. Routers and mills require ongoing investments in expensive cutting tools, cooling fluids, higher power consumption, and highly skilled labor to prevent machine crashes.
A: Standard mills and lathes cannot perform additive tasks. However, specialized hybrid manufacturing machines now exist. These advanced centers feature both an additive metal extrusion head and subtractive milling spindles on the same tool path, allowing operators to build and refine a part within one single setup.
