When we ask what the acronym means, the direct answer is simple: CNC stands for Computer Numerical Control. This precise term marks the historical evolution from manual routing and punch-card operations to fully automated, software-driven manufacturing. Modern production floors rely heavily on a cnc machine to fabricate complex geometries at unprecedented speeds and scales.
However, understanding the acronym provides just a baseline. The real challenge lies in evaluating how automated equipment impacts unit economics, production scalability, and facility requirements. Business leaders must navigate these physical and financial variables when transitioning to or optimizing their automated operations.
This guide outlines essential machine capabilities, distinct categorizations, and mechanical constraints. You will learn the critical criteria needed to evaluate an equipment purchase thoroughly. We will also compare the realities of buying your own machinery versus outsourcing production to a specialized manufacturing partner.
Definition: CNC (Computer Numerical Control) machines translate digital CAD/CAM models into physical parts via automated, precision-guided tooling.
Strategic Value: The primary ROI driver of a CNC machine is repeatability at scale, reducing per-part variance compared to manual machining.
Evaluation Mandate: Selecting the right CNC solution requires aligning machine capabilities (axes, spindle speed, rigidity) with specific material constraints and production volume requirements.
Implementation Reality: Total Cost of Ownership (TCO) extends far beyond the sticker price, heavily factoring in tooling, operator training, software licensing, and facility infrastructure.
What drives the actual physical motion of modern manufacturing? It all starts in the digital realm. Engineers use Computer-Aided Design (CAD) software to create intricate 3D models. Next, Computer-Aided Manufacturing (CAM) software translates these models into actionable instructions. This software dictates the true potential of your equipment. Even the most rigid hardware remains useless without optimized programming guiding its movements.
During programming, you will encounter G-code and M-code. G-code stands for Geometric Code. It tells the motors where to move, how fast to travel, and what specific path to follow across the raw material. M-code manages miscellaneous machine functions. These secondary commands turn on the spindle, activate the coolant pump, or open automated doors.
A major risk consideration here involves software compatibility. Your CAM software requires a specific post-processor to generate the correct code dialect for your specific controller brand, whether you use Fanuc, Haas, or Heidenhain. If the post-processor lacks proper configuration, the equipment cannot execute the toolpaths safely. Bad code frequently leads to scrapped parts or catastrophic spindle collisions.
Hardware executes the digital commands. This execution relies entirely on complex control systems bridging the gap between software and physical movement. Open-loop systems typically use stepper motors. They receive electrical pulses and move accordingly. However, they cannot verify if the tool actually reached the intended coordinate. If the cutting tool hits a hard spot in the metal, it might skip a step, ruining the part permanently.
Industrial-grade machinery uses closed-loop systems powered by servo motors and positional encoders. These encoders constantly relay exact location data back to the central controller. If an external force pushes the tool off course by even a fraction of a millimeter, the system corrects the error instantly. This continuous feedback loop drastically improves part accuracy.
Digital commands must translate into precise multi-axis physical movements flawlessly. Your primary success criteria should focus on achieving verified tolerances repeatedly. Operators must hit these exact dimensions across hundreds of parts without constant manual intervention. If your setup drifts out of tolerance, you lose the primary operational benefit of automation.
Milling equipment handles complex geometries brilliantly. These systems excel at shaping flat, prismatic, or block-like raw materials. The cutting tool spins rapidly while moving across a stationary workpiece. You typically choose between 3-axis, 4-axis, and 5-axis configurations based on your part complexity.
The core evaluation metric involves balancing axis flexibility against setup time. A standard 3-axis setup requires operators to manually unclamp and flip the part to machine multiple sides. This manual handling introduces human error. A 5-axis cnc machine rotates the part automatically, attacking it from nearly any angle. This drastically reduces manual repositioning. However, 5-axis operations demand much higher programming complexity and significantly costlier CAM software licenses.
Lathes and turning centers serve an entirely different geometric purpose. They excel at producing cylindrical parts. You use them primarily for threading, boring, and high-speed symmetric cutting. Instead of a spinning tool, the raw material itself spins rapidly in a chuck while a stationary cutting tool shapes the outer or inner diameter.
When evaluating modern turning centers, prioritize live tooling capabilities. Traditional lathes only handle symmetric turning. Live tooling introduces small rotating cutters inside the lathe turret. This innovation allows the machine to perform cross-drilling and off-center milling operations on the spinning part. Merging milling and turning into a single setup eliminates the need to move parts between different machines.

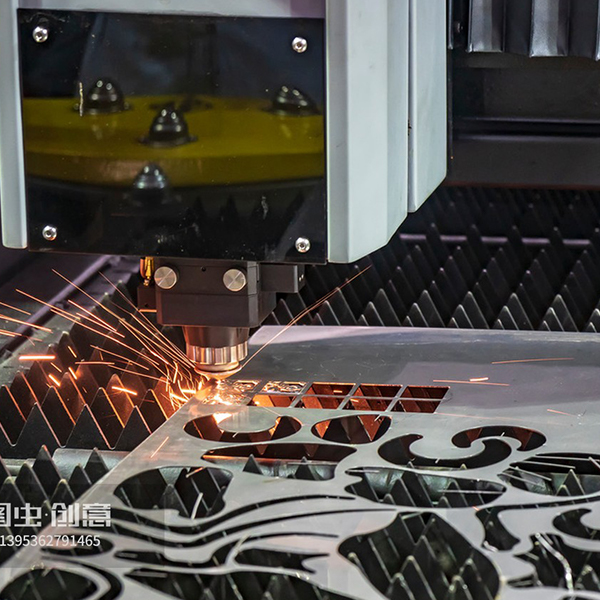

Routers, plasma cutters, and laser systems dominate sheet material processing. Routers excel at cutting softer, non-ferrous sheet materials. You will find them cutting wood, industrial plastics, and composite panels. Plasma and laser systems cut heavy sheet metals like steel and aluminum.
Your primary evaluation metric here focuses on kerf width, edge finish requirements, and thermal distortion risks. Kerf refers to the physical width of the material removed during the cut. Lasers offer a microscopic kerf, enabling highly intricate cuts. However, thermal cutting methods introduce Heat Affected Zones (HAZ). Extreme heat can warp thin sheet metal or accidentally alter the metallurgical structure of the edge, making secondary finishing difficult.
Application Comparison Table
Machine Category | Primary Material Form | Best Used For | Core Evaluation Metric |
|---|---|---|---|
Milling (3, 4, 5-Axis) | Blocks, Billets, Prismatic | Complex 3D geometries, pockets, contours | Axis flexibility vs. manual setup time |
Lathes / Turning | Cylinders, Bar stock, Tubes | Symmetrical parts, threading, boring | Live tooling & multi-tasking capabilities |
Routers | Sheet Wood, Plastics, Foam | Large panel cutting, cabinetry, signs | Spindle RPM and vacuum hold-down strength |
Plasma / Lasers | Sheet Metal, Steel Plates | Flat metal brackets, industrial profiles | Kerf width and Heat Affected Zone (HAZ) risks |
How do you truly assess a spec sheet? Marketing brochures often obscure physical realities. You will frequently encounter bold claims promoting "high-speed machining." Let us apply a reality check to these claims. Speed requires massive physical weight to dampen vibration.
Cutting metal generates intense kinetic forces and chatter. Lightweight frames fail to hold tight tolerances in hard metals. They vibrate excessively, leaving poor surface finishes. If you plan to cut tough aerospace alloys like Titanium or Inconel, you need a heavy, cast-iron machine base. Weight absorbs vibration. Never sacrifice machine mass if precision is your ultimate goal.
You must match your spindle RPM capabilities to your specific material. Aluminum and industrial plastics cut best at very high RPMs. Steel and tough alloys require massive torque at much lower RPMs. A spindle designed exclusively for aluminum will stall and break tools if you force it through hardened steel.
Spindles also possess strict duty cycle limitations. Running a spindle at maximum speed constantly will rapidly burn out its ceramic bearings. Look for systems offering thermal growth compensation. As spindles heat up during long shifts, the metal expands microscopically. This thermal expansion pushes the cutting tool deeper into the part, ruining the tolerance. Thermal compensation software continuously adjusts the axis positions to counteract this physical growth automatically.
You cannot afford idle spindles. Every minute a machine sits waiting for a human, you lose money. Automatic Tool Changers (ATC) switch cutting tools in seconds, moving from a drill to a tap without human input. Pallet pools load raw material into the cutting zone automatically while the operator preps the next job outside the enclosure.
When calculating your return on investment, measure the expected reduction in spindle downtime. Less operator intervention per shift directly increases your daily throughput. Automation transforms a standard asset into a continuous revenue generator.
Spec Sheet Evaluation Chart
Feature Listed on Spec Sheet | Marketing Claim | Engineering Reality & Outcome |
|---|---|---|
Machine Weight (Cast Iron Base) | "Ultra-fast rapid movements" | Heavier frames dampen vibration. Lightweight frames suffer from chatter in hard metals. |
Spindle Torque Curve | "15,000 RPM Spindle" | High RPM is useless for steel if low-end torque is missing. Match the curve to the material. |
Automatic Tool Changer (ATC) Capacity | "Holds 60+ Tools" | Higher capacity reduces setup times between different jobs, directly boosting daily ROI. |
Thermal Compensation | "Unmatched Precision" | Prevents dimension drift as the spindle heats up and expands during long continuous shifts. |
Purchasing heavy equipment represents a massive capital expenditure. You must weigh this internal investment against partnering with a contract manufacturer. Owning your own machinery gives you absolute control over intellectual property. You never risk leaking proprietary designs to external vendors.
You also gain immediate prototyping turnaround times. Engineering teams can design a part in the morning and machine a physical prototype by the afternoon. You no longer wait weeks for a supplier to ship a test component. Always conduct a strict breakeven analysis. Identify the exact production volume threshold where amortized equipment costs undercut contract manufacturing margins.
Outsourcing helps you avoid heavy capital expenditures entirely. You also avoid costly, permanent facility modifications. Specialized partners carry vital compliance certifications like ISO 9001, AS9100, or medical-grade ISO 13485. Achieving these certifications internally takes years and immense administrative effort.
Furthermore, established vendors invest heavily in specialized metrology equipment. They use expensive Coordinate Measuring Machines (CMM) to verify part dimensions accurately. You leverage their stringent quality control departments without paying for the underlying testing infrastructure.
Do not just look at the machine's initial sticker price. Operational realities drain budgets rapidly. Consider these frequently overlooked financial burdens:
Consumables: You must purchase end mills, carbide inserts, tapping fluids, and cutting coolant continuously. High-performance tooling wears out quickly.
Maintenance: Machines require routine preventative maintenance, expensive periodic spindle rebuilds, and costly replacement parts. Unexpected downtime halts your entire production schedule instantly.
The Talent Gap: Hiring experienced programmers and setup operators is incredibly expensive. Skilled machinists remain scarce in today's highly competitive labor market. Retaining them requires premium salaries.
Rolling out new automated equipment involves serious infrastructure upgrades. Commercial machinery demands substantial power. You will need dedicated 3-phase electrical drops. Standard residential or light-commercial power simply cannot run industrial spindles.
Spindles, tool changers, and automated doors require high volumes of clean, dry compressed air. Moisture in your air lines will destroy internal pneumatic valves rapidly. You must invest in heavy-duty air compressors and refrigerated air dryers. Climate control also matters immensely. Daily shop floor temperature fluctuations cause raw metal to expand and contract. This environmental shifting easily ruins tight part tolerances during long production runs.
You must establish a verified data pipeline. The workflow from the engineering department to the shop floor must remain flawless. Implement strict version control protocols for all part files.
If an operator runs an outdated G-code program, they will scrap the part and waste expensive material. Worse, faulty code causes catastrophic machine crashes. A rapid spindle collision against a metal vise can destroy a machine entirely, causing tens of thousands of dollars in mechanical damage. Utilize CAM simulation software to verify toolpaths digitally before pressing start on the physical controller.
Safety compliance remains strictly non-negotiable. Ensure machines feature heavy impact-resistant enclosures. Polycarbonate windows prevent shattered cutting tools from striking operators at bullet-like speeds.
High-speed cutting generates dangerous, atomized coolant mist. You must install proper mist extraction ventilation systems above the machines to protect operator lungs from long-term respiratory damage. Finally, implement strict emergency stop protocols. Operators need immediate, unobstructed access to kill switches in case a tool breaks or a workpiece comes loose from its fixture.
We have traced the acronym from its basic definition to its highly practical business applications. Understanding computer numerical control means recognizing its profound power to scale precision manufacturing. It forces a shift from manual craftsmanship to data-driven, repeatable production.
When shortlisting your equipment options, prioritize your specific material requirements first. Match your part complexity to the correct axis configuration to avoid overpaying for unnecessary capabilities. Always evaluate your true production volume before committing substantial capital to an in-house setup.
Your next step requires immediate action. Audit your current production bottlenecks to see where automation makes sense. Calculate the exact dimensional tolerances your parts require. Finally, request a comprehensive cycle-time study from an equipment vendor or a trusted manufacturing partner. This tangible data will guide your final operational strategy.
A: NC (Numerical Control) represents the older generation of automated machining. Operators programmed early NC equipment using physical punched paper cards. CNC integrates a dedicated computer directly into the control panel. This modernization allows operators to edit programs instantly, simulate toolpaths digitally, and store massive files without relying on fragile physical media.
A: Yes, standard operations require trained personnel. Operators must load raw materials, measure cutting tools, set work coordinates, and monitor the initial cutting passes. Fully automated "lights-out" manufacturing exists, but it requires heavy integration with robotic loading arms and pallet systems. Even then, humans must perform maintenance and quality control checks.
A: G-code stands for Geometric Code. It serves as the universal programming language for automated machine tools. The code instructs the motors exactly where to move in three-dimensional space. It dictates travel speed, tool path trajectories, and axis coordinates, ensuring the cutting tool safely and accurately shapes the raw material.
A: A well-maintained commercial machine typically lasts between 10 to 15 years in daily production. Mechanical wear on ball screws and linear guides eventually degrades cutting precision over time. Furthermore, control software obsolescence often forces an upgrade. Most shops aim to hit their initial return on investment within the first three to five years.
